Solution Proposal from Mitutoyo

Are You Satisfied with Your Current Optical and Vision Measuring Machine?

　 -CNC Vision Measuring Machine　 Quick Vision Active Series

As parts get smaller and quality standards rise, the number of measurements needed keeps growing. Non-contact dimensional inspection has never been more essential for maintaining efficiency and accuracy.

Are you facing difficulties with your current optical or image-based measurement approach?

Mitutoyo offers a solution that addresses these issues — without requiring a complete overhaul of your existing measurement methods.

Challenges:

• The extensive number of measurement items significantly increases inspection times when relying on a microscope.

• High magnification levels slow down the process, especially when verifying both similar and distinct points.

• It’s difficult to eliminate the occasional need for secondary measurements to confirm dimensions after extra processing steps.

Automated Measurements can Drastically Reduce Downtime Before Your Next Production Step, Helping You get Products out the Door Faster

Struggling with tedious manual inspections as measurement points keep adding up? Mitutoyo's QV Active Series tackles this challenge head-on with automated measurements.

This advanced system accelerates the process by performing inspections automatically, while also capturing your initial manual steps to create a repeatable routine. The result? Smooth, consistent, and time-efficient inspections every time.

Manual measurement becomes automated, shortening cycle time

Reduce Rework due to Measurement Errors

Do you find mistakes in your measurement positions at high magnification?

By starting with a wider view and then zooming in for precision, you can pinpoint measurement targets easily and accurately. This approach cuts down on errors, saves you from repetitive manual corrections, and streamlines your workflow.

Searching at low magnification and measuring at high magnification will eliminate mistakes in locating measurement positions and reduce labor hours.

Can be Used like a Microscope

Worried that a CNC Vision Measuring Machine requires a complicated setup for a quick post-processing check? Much like using a microscope or projector, you can measure on the spot and view immediate results through an intuitive counter display.

By combining this approach with autofocus, sharp accuracy is maintained at each measurement point, effectively eliminating errors caused by focus issues—even for quick checks.

Enhancing reliability by minimizing individual errors, even during short-term usage.

Need help solving a measurement problem? Contact us anytime!

Related Solutions and Applications

Quick Vision Pro Series - General-Purpose CNC Vision Measuring System

The Quick Vision Pro delivers exceptional performance with versatile models featuring touch probes and non-contact displacement sensors, providing robust support for increased production demands.

DDPAK - Defect Inspection Software for Vision Measuring Systems

DDPAK is advanced defect inspection software for CNC Vision Measuring Systems, combining precise dimensional measurement with automated detection of defects such as dust, burrs, and cracks.

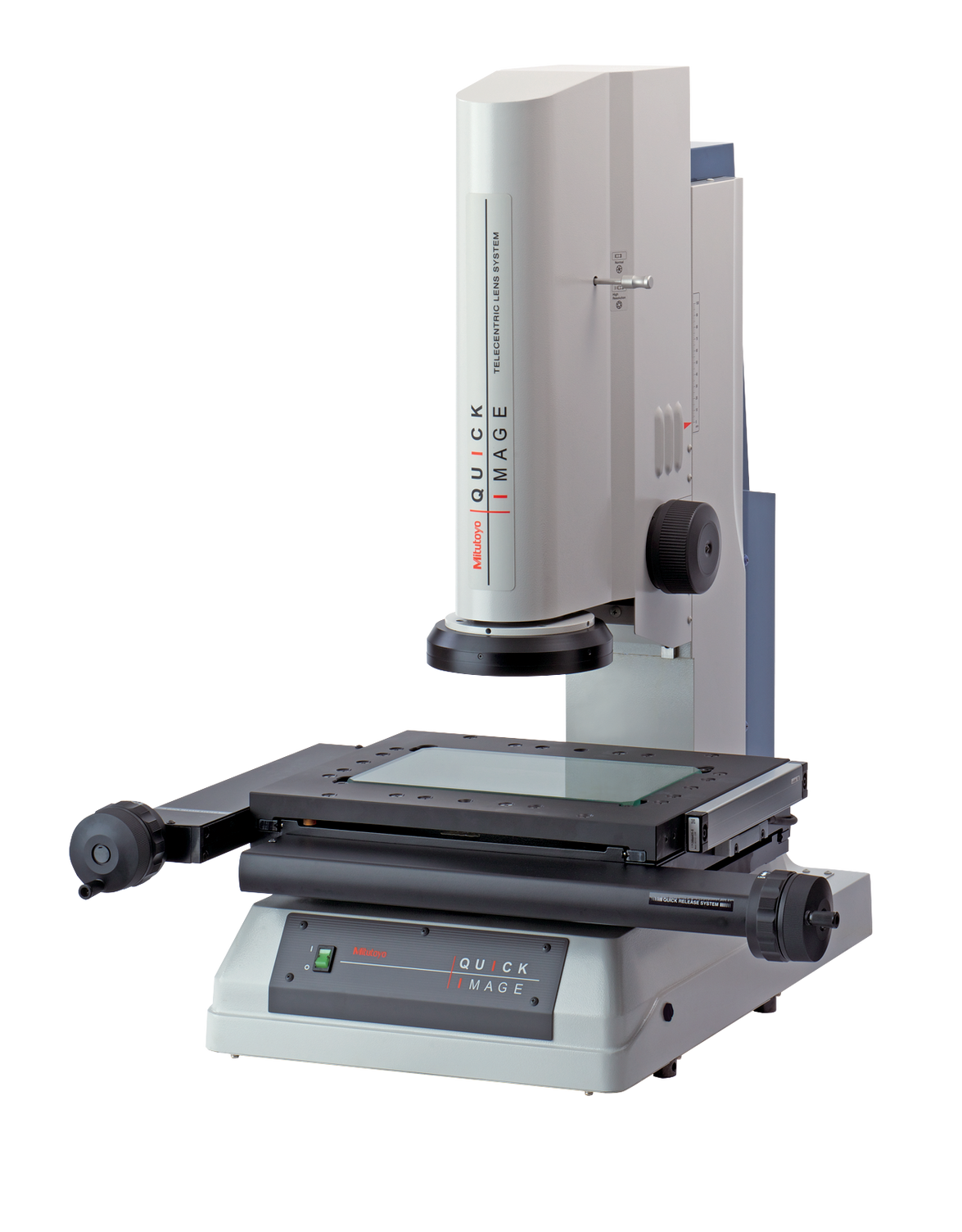

Quick Image - Manual Vision Measuring System

The Quick Image is a manual image measuring system designed for convenient shipping inspections. With a single click, it efficiently measures multiple workpieces on the screen using advanced pattern-searching capabilities.
