Solution Proposal from Mitutoyo

Are You Satisfied with Your Current Vision Measuring Machine?

　-CNC Vision Measuring Machine　Quick Vision Pro Series

As the transition to electric vehicles (EVs) gains momentum, the demand for electronic devices, semiconductors, IoT solutions, and 5G communications continues to soar.

This growth brings with it an increasing need for precise dimensional measurements to ensure reliability and performance.

Do you have any of the following concerns with your Vision Machine?

Challenges:

• To improve reliability, we want to perform complete pre-shipment measurements.

• Eliminating slight stoppage from the warpage of measured objects.

• Implementing Vision Machines for in-line measurement to improve yield can be labor-intensive, requiring significant resources and manpower.

Achieve Comprehensive Inspection with Non-Stop Measurement

With rising quality demands, are you striving to inspect all core components critical to the function and performance of your finished products?

Unlike traditional CNC Vision Measuring Machines, Quick Vision Pro revolutionizes the process with continuous, non-stop measurements, enabling tasks that were previously deemed impractical. By maintaining constant motion during inspections, Quick Vision Pro reduces measurement time by up to 80%, making it both efficient and cost-effective to inspect every key component.

The result? Fewer defects slip through the cracks, significantly boosting product reliability. Whether you're inspecting electronic devices, showerheads, or inkjet nozzles, a complete inspection with Quick Vision Pro can enhance the reliability of your products.

Why not explore a complete inspection solution to elevate your quality standards?

Achieving complete inspection with greatly reduced measurement time

Overcome Workflow Delays Caused by Warped Parts

If warping in your measurement objects leads to frequent focusing errors and forces inspectors to stay glued to the CNC machine, you’re not alone. This common challenge significantly impacts productivity and efficiency.

Quick Vision Pro addresses this issue with its innovative Tracking Auto Focus (TAF) feature. By automatically following surface contours, the system maintains perfect focus—even on warped, multi-layer substrates—eliminating the need for constant refocusing.

This advanced capability allows your machine to run seamlessly while freeing up your team to focus on other tasks, boosting both efficiency and output.

Enhance Productivity by Minimizing Downtime

Boosting Yield with Enhanced In-Process Inspection

In electronic manufacturing, even minor misalignments can lead to significant defects, such as poor mounting. Key areas where accurate data acquisition is critical include:

• Position correction for die mounters to ensure precise chip placement.

• Die shift monitoring during chip mold sealing to maintain alignment.

By increasing the frequency of sampling inspections during these processes, yield can be significantly improved.

Improve your yield by enhancing In-Line inspection

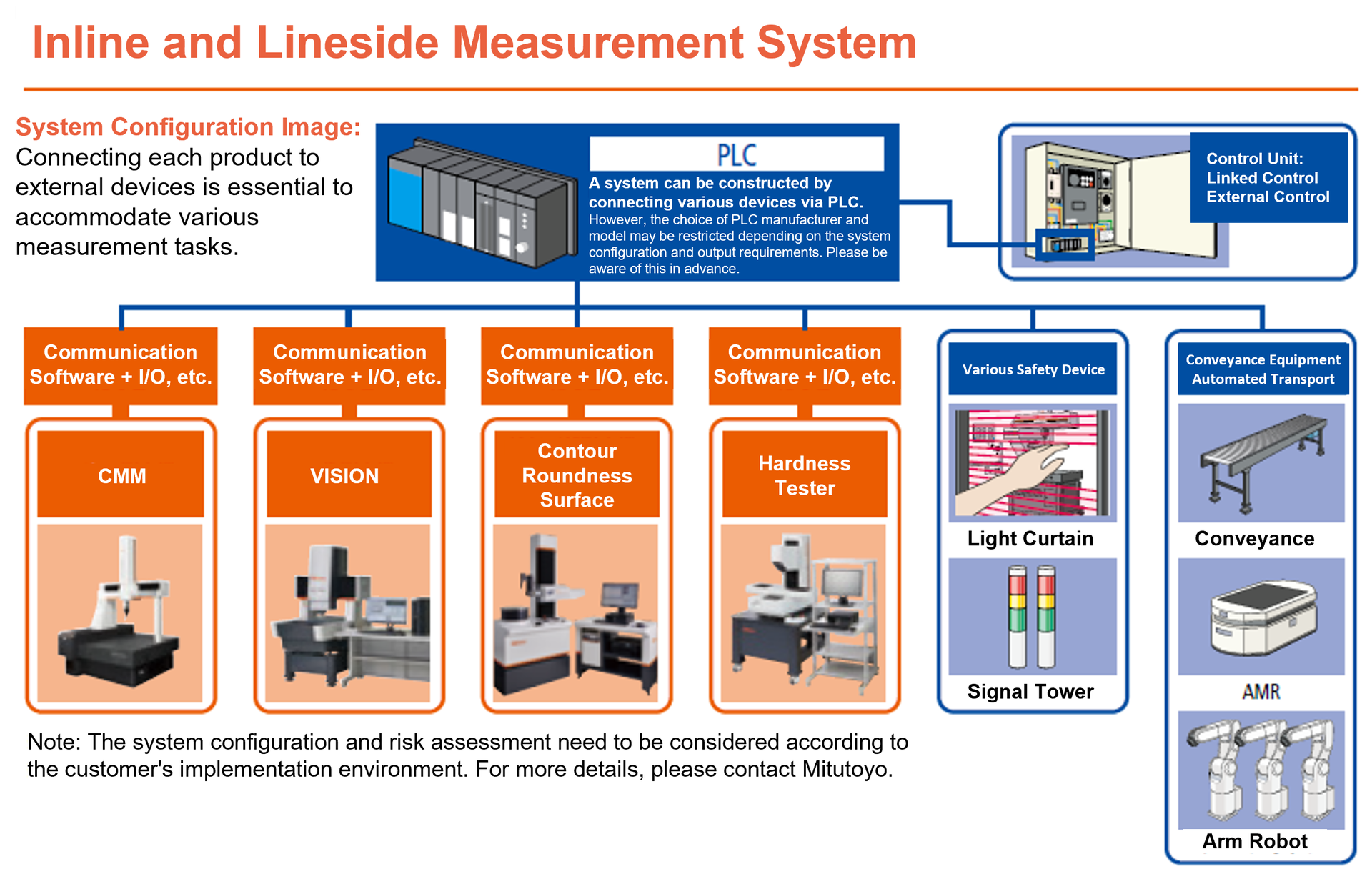

Seamless Automation for 24-Hour Precision Measurement

Are your precision measurement processes still reliant on manual operations, requiring workers to frequently replace objects?

With our solution, you can fully automate the process by integrating a CNC Vision Measuring Machine with a carrier system. This setup enables seamless transitions, handling everything from object conveyance and precision measurement to OK/NG judgment and transfer to the next stage.

Thanks to our extensive expertise, we can customize the ideal automation solution to meet your specific needs. Let Mitutoyo help you unlock continuous, efficient operation—consult with us today!

Need help solving a measurement problem? Contact us anytime!
