Solution Proposal from Mitutoyo

Are You Satisfied with Your Current Displacement Sensor?

　 -Environment-Resistant Digital Gage　 LG100/200 Series

Displacement sensors are not limited to measuring dimensions on a stand—they also provide valuable insights to anticipate future changes.

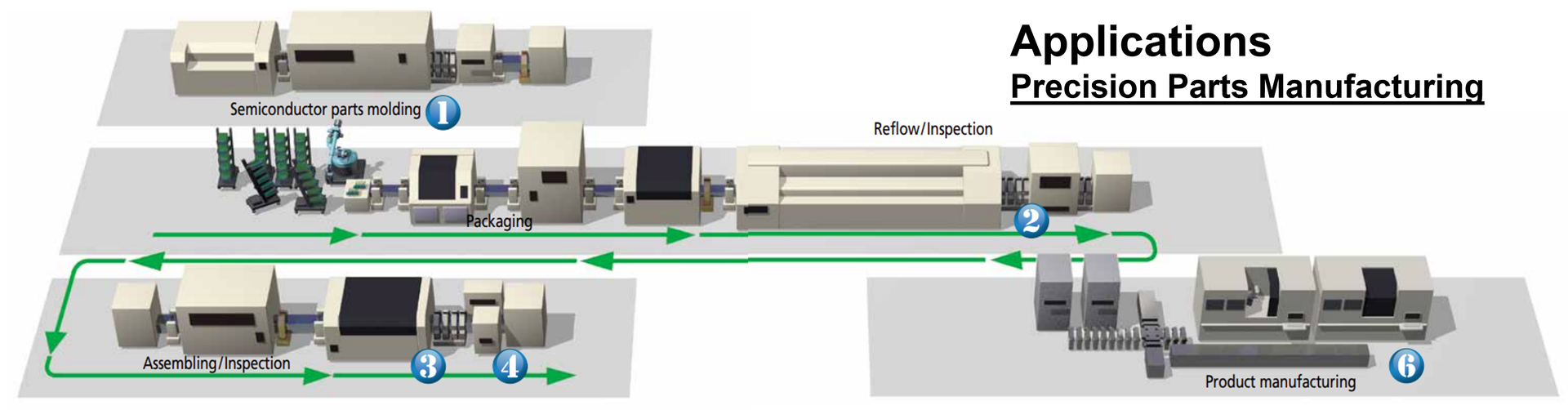

Example of Displacement Sensor Installation: Precision Parts Manufacturing

Desired Outcomes

• Use the sensor reliably even in environments with cutting oil or scattered dust.

• Perform in-line measurement, equipment monitoring, and positioning with high accuracy and efficiency.

• Easily collect data using a personal computer without relying on a complicated system.

Comprehensive Solution: Contact-Type Displacement Sensor

No Complex Systems Needed! Effortless Data Collection on Your Computer

SOFTWARE LG QuickSetupTool – Free download

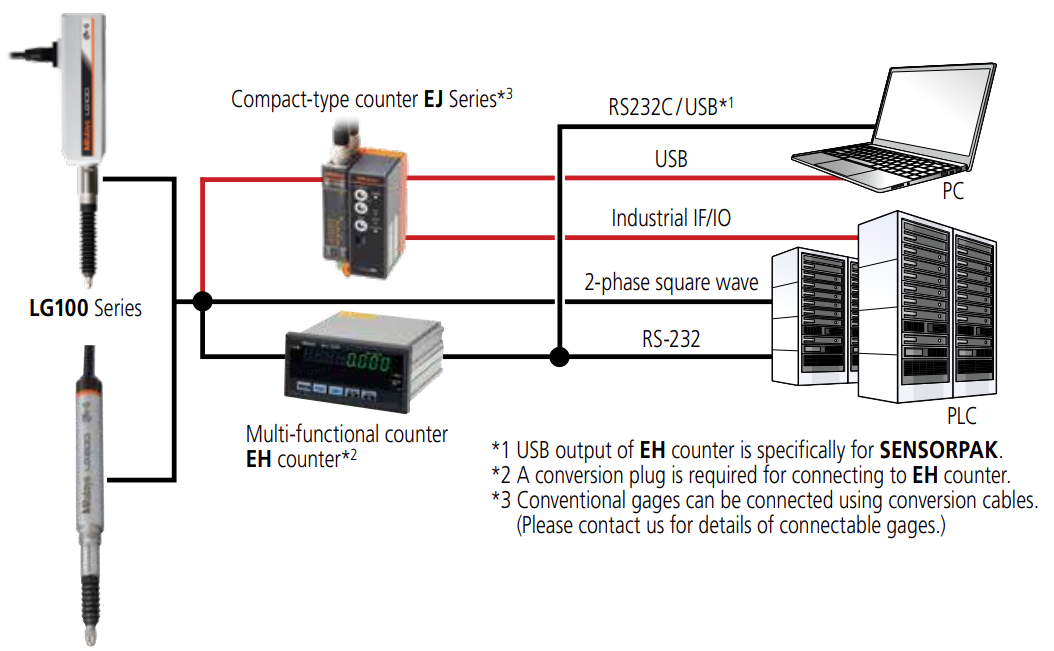

A configuration tool is available for use with the EJ counter when connected via the optional USB interface.
All kinds of settings normally carried out with counter operating keys can now be easily applied from a computer.

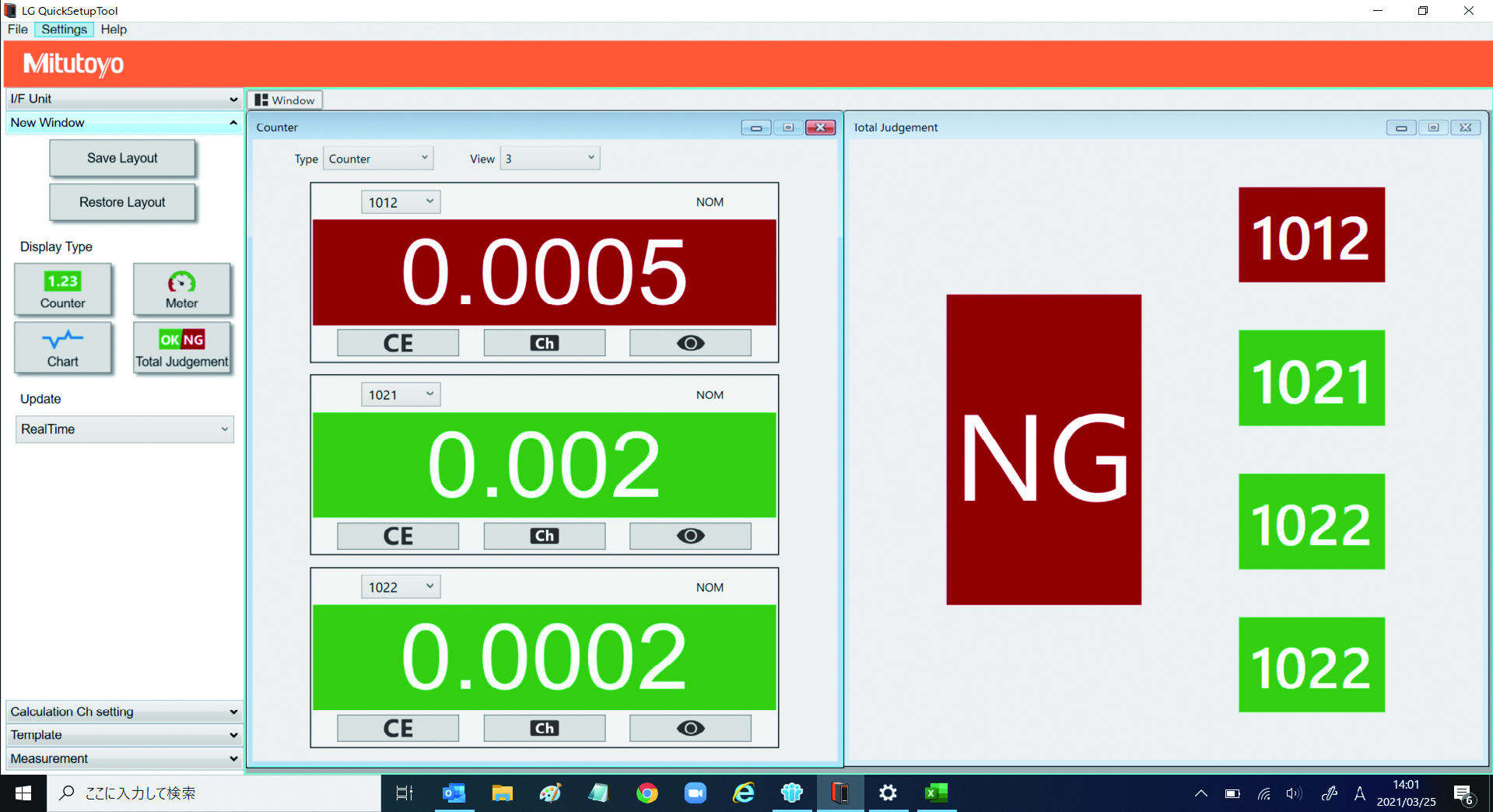

Measurement value display and operation results can also be viewed on a PC.

Note 2: This software can be used free of charge and downloaded from the Mitutoyo website.
https://www.mitutoyo.co.jp/eng/contact/products/lg/

Recommended system environment

• OS: Windows 10 Pro 32 bit/64 bit
• Display: 1600×1200 or more
• Memory: 1024 MB or more
• Communication method: USB2.0 (Full speed)
• USB connector: Type C connector
• Note 3: USB device drivers are standard Windows drivers.

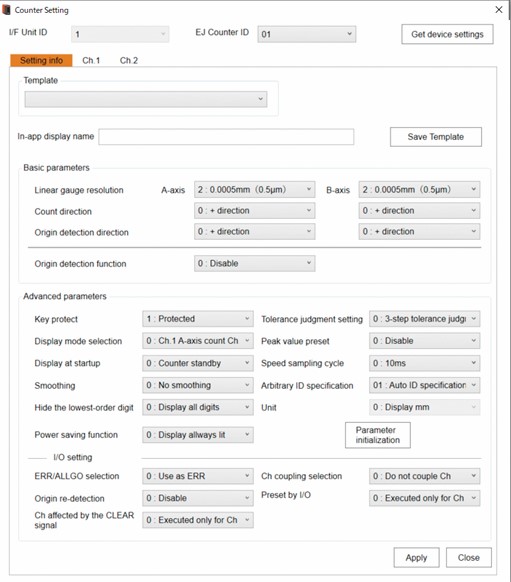

Parameter SettingParameter Setting

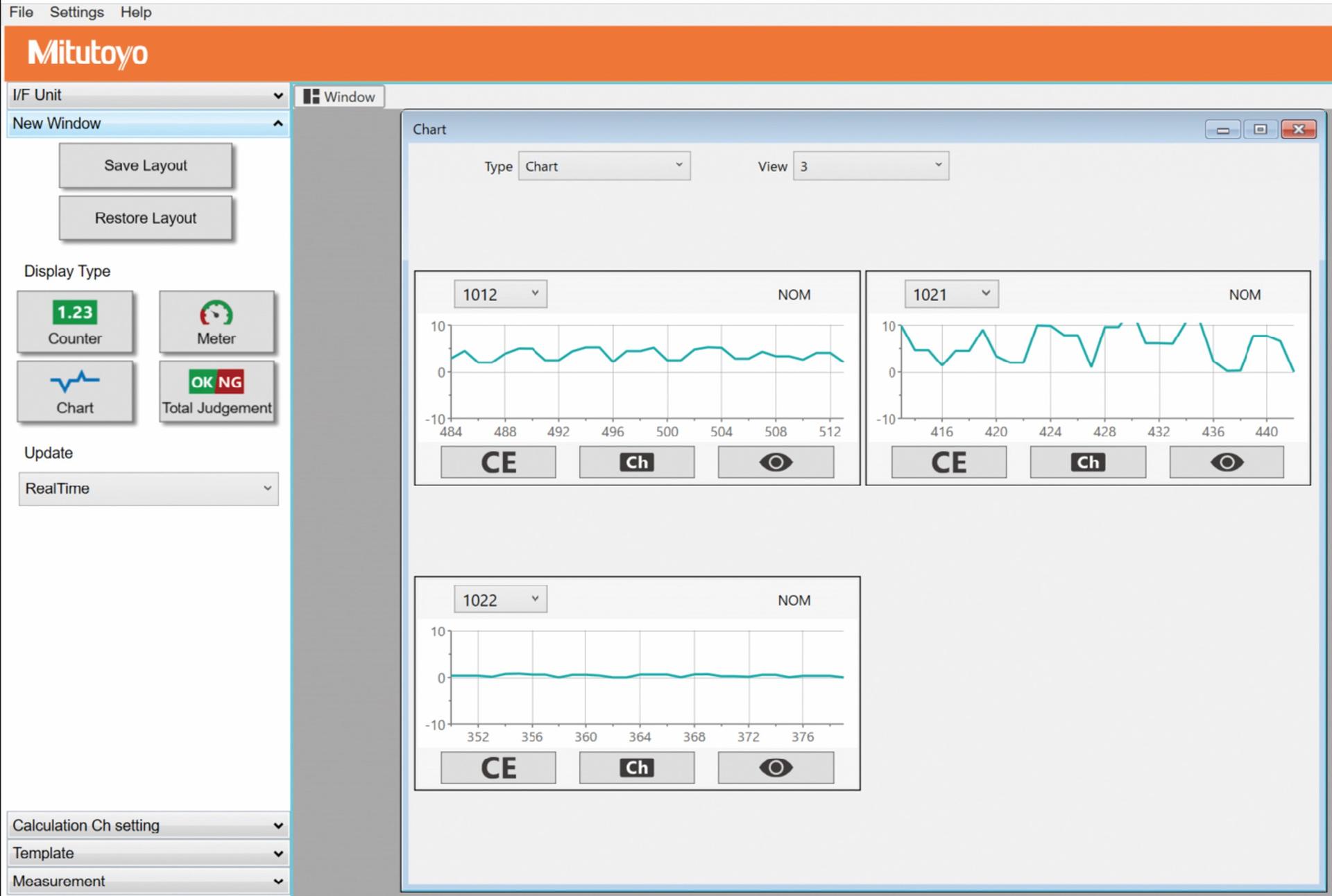

Chart

General SettingGeneral Setting

Need help solving a measurement problem? Contact us anytime!
