Solution Proposal from Mitutoyo

Are You Satisfied with Your Current External Diameter Measurement Equipment?

　 -Laser Scan Micrometer　 LSM-6902H

Do you face any of the following challenges when measuring outer diameter, run-out, gaps, height or thickness?

We offer a solution to these challenges using our high accuracy, non-contact laser scanning micrometer (LSM) system.

Challenges:

• Increased inspection frequency has been mandated by a supplier.

• Measurement results lack consistency due to manual inspection.

• Non-contact, high-precision equipment is needed for effective master gauge management.

Features of the Non-Contact laser scanning micrometer (LSM) system

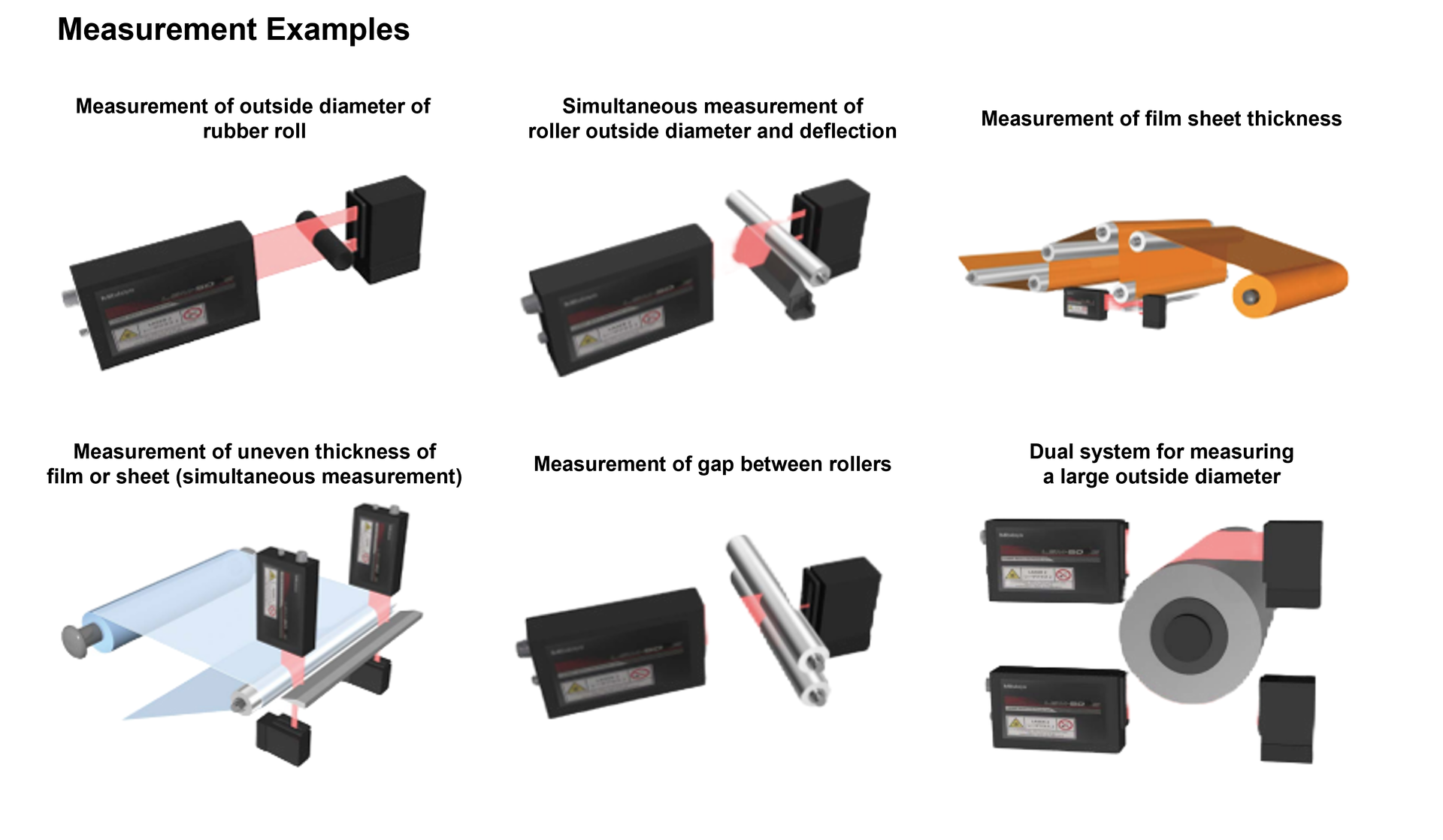

• Provides simple, high-precision measurement of the outer diameter for cylindrical gauges, rolls, shafts, and blade tools without physical contact.

• Capable of measuring soft materials like rubber without causing deformation.

• High-speed scanning ensures stable measurement of fluctuating objects, such as vibrating materials.

• Safely measures hazardous objects, including moving or high-temperature items, that cannot be touched.

• Accurately measures minute gaps that are beyond the capability of contact-type sensors.

Benefits of Implementation

• Enables high-speed total inspection of wires.

• Provides high-precision outer diameter measurement and inspection of reference gauges, such as pin gauges.

Supports various in-line outer diameter measurement inspections

No Complicated System Needed! Effortless Data Collection with Your PC

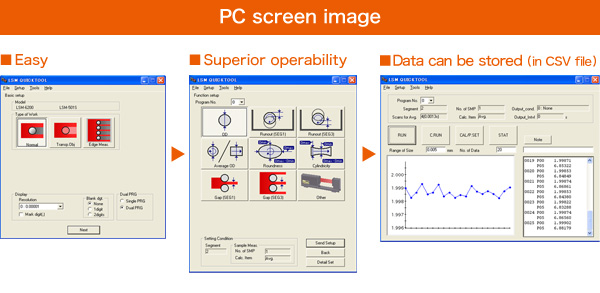

Simplify setup with the intuitive "LSM QUICKTOOL" software, provided free of charge, enabling convenient data loading without the need for a manual.

Need help solving a measurement problem? Contact us anytime!
