Solution Proposal from Mitutoyo

Enhance Your 3D Measurements with an Infinite Positioning Probe Head!

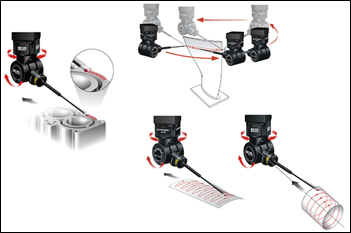

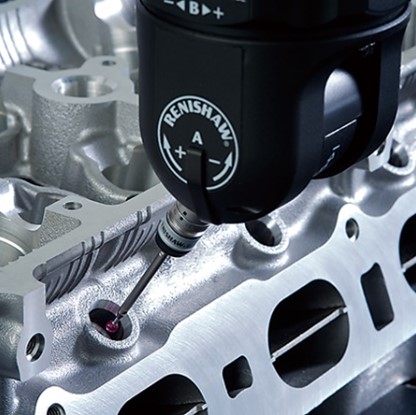

　 -5 Axis control CMM probe　 PH20 / REVO

Mitutoyo CMM’s with a PH20 or REVO using 5-Axis Control Can Solve the Following Challenges:

• Limited Flexibility: Enabling flexible measurement of complex geometries without repositioning the part or probe.

• Long Cycle Times: 5-axis scanning reduces cycle times, increasing throughput and efficiency.

• Inconsistent Accuracy: The infinite positioning capabilities ensure consistent accuracy across different angles and orientations.

• Complex Geometries: 5-axis measurement excels at capturing intricate and freeform shapes with high-speed, precise scanning, and touch probe accuracy.

• Reduced Efficiency: Automated motion reduces the need for manual intervention, boosting repeatability and productivity.

• Lack of Repeatability: High precision and repeatability are maintained on parts with prismatic geometries or varying surfaces.

• In summary, 5-axis systems improve measurement speed, accuracy, and repeatability while reducing manual effort.

Need help solving a measurement problem? Contact us anytime!
