Are You Satisfied with Your Current Roundness Measuring Machine?

　 -Roundness measuring machine　 RA-2200 Series

Roundness is increasingly vital for ensuring the efficiency, quietness, and airtightness of rotating objects and sliding parts.

Are you facing challenges with roundness measurement?

Mitutoyo provides tailored solutions to overcome these issues while allowing you to maintain your current measurement methods.

Challenges:

• Individual errors occur during centering and leveling.

• Preparing to measure workpieces that cannot be chucked is time-consuming.

• Developing measurement procedures is challenging, limiting the number of people who can operate the machine effectively.

Reducing Individual Errors in Centering and Horizontal Alignment

When centering and horizontal alignment on a roundness measuring machine are not properly adjusted, errors increase significantly, impacting measurement accuracy. Are you experiencing individual errors during these adjustments?

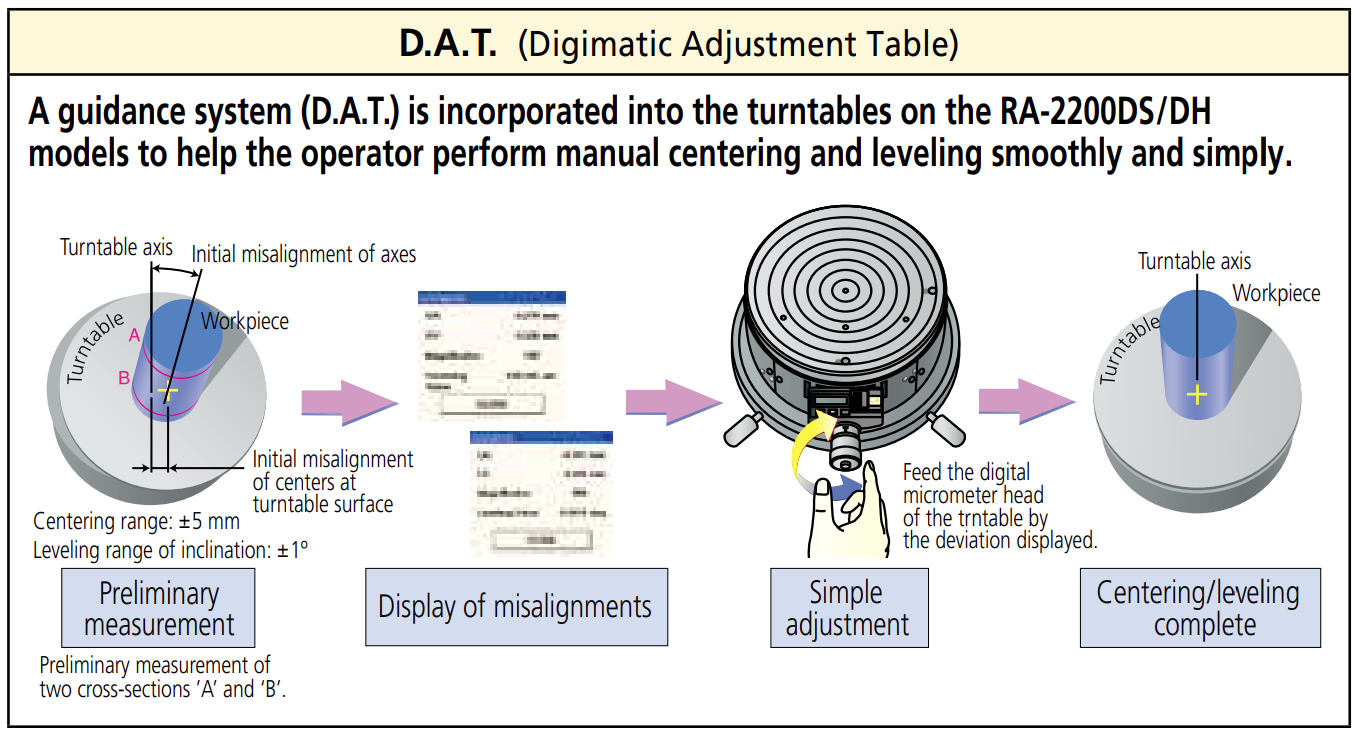

With the new roundness measuring machine, centering and horizontal alignment can be completed easily by turning the micrometer head as guided. This innovation reduces individual errors and minimizes the time and effort required for adjustments.

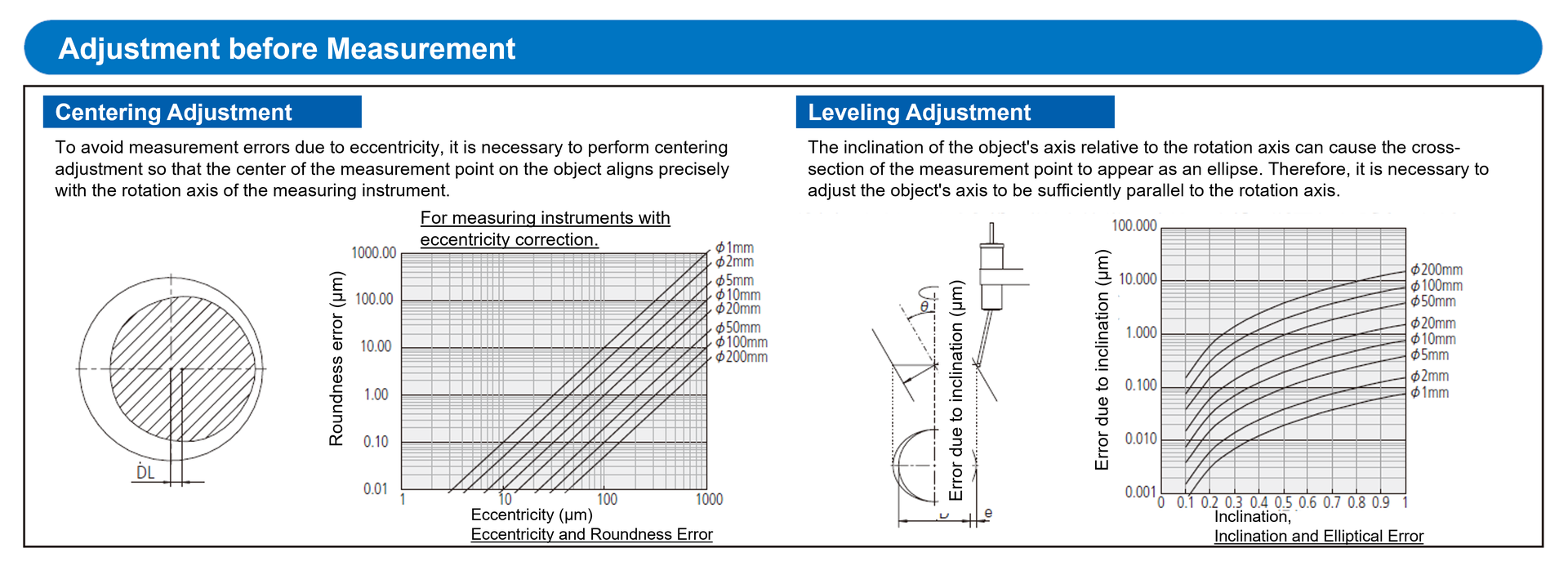

Insufficient adjustments can significantly impact measurement results.

Assistance with centering and horizontal alignment minimizes individual errors and reduces labor costs.

Reducing Cycle Time for Measurement Preparation

Are you struggling to center and prepare large or soft workpieces that cannot be chucked, leading to extended setup times?

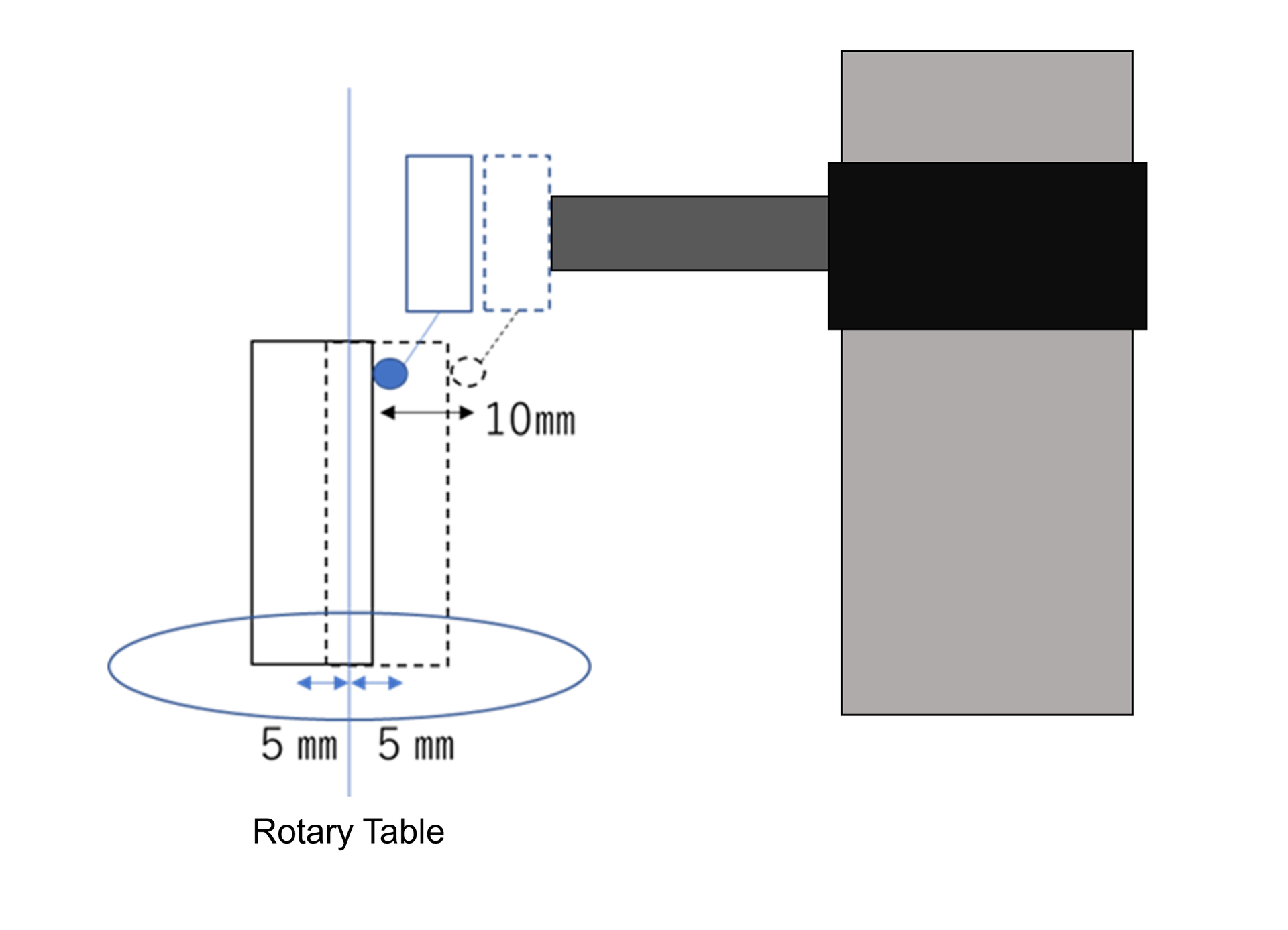

With a 10 mm X-axis following range, centering and horizontal alignment are possible even with significant displacement.

This capability drastically reduces cycle time for measurement preparation, enhancing overall efficiency.

Start measurement using rough settings. Set-up time is reduced for measuring preparation.

Easily Create Measurement Procedures

Is creating a measurement procedure challenging, leaving only a few people capable of performing inspections?

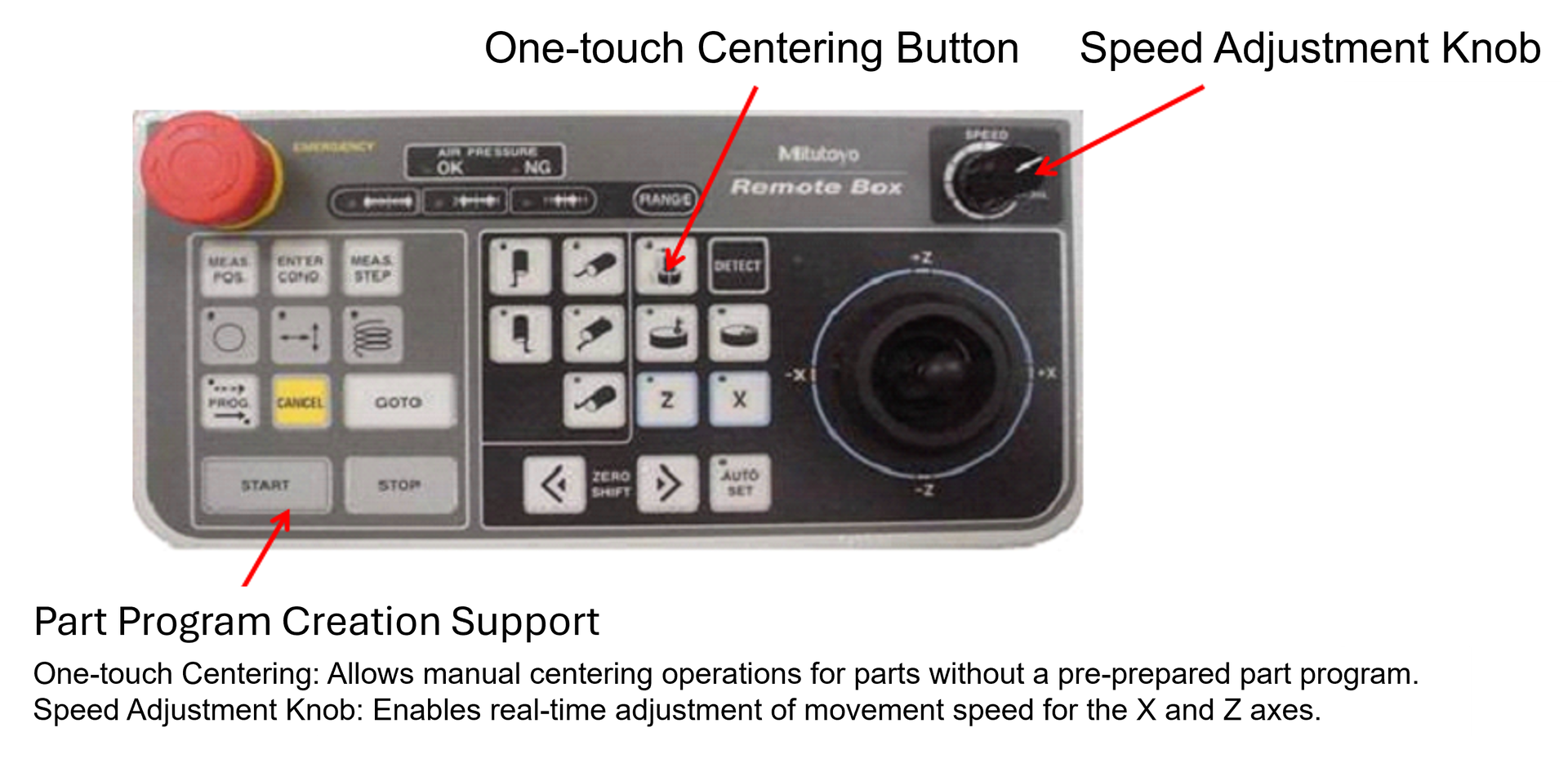

With the new roundness measuring machine, procedures can be created effortlessly using a joystick box. This user-friendly solution ensures anyone can create measurement procedures with ease, removing any restrictions.

Anyone can easily create a measurement procedure with a joystick

Introducing the Latest Features: Harmonic Tolerance Matching and Velocity Analysis

With the rise of EV technology, the bearing industry faces growing demands for higher speed and responsiveness. However, challenges such as seizure and melting caused by internal heat generation have become significant concerns.

Are you struggling to effectively evaluate the sliding surface of bearings?

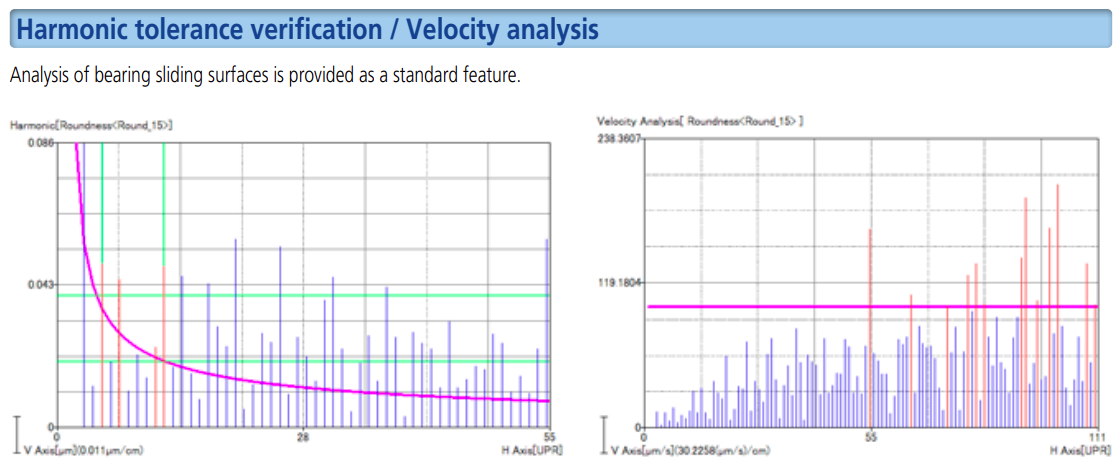

Harmonic tolerance matching enables precise tolerance settings for harmonic analysis results using exponential functions, offering advanced insights into performance.

Velocity analysis allows for the assessment of vibration speed at various rotational speeds, simulating real-world conditions when the product is installed.

Together, these features provide more accurate evaluations under actual operating conditions, enhancing product quality and reliability.

Need help solving a measurement problem? Contact us anytime!
