Solution Proposal from Mitutoyo

Are You Satisfied with Your Current Surface Roughness Measuring Machine?

　 -Surface roughness and contour shape measuring machine　 FORMTRACER-Avant Series

Surface roughness control is a critical aspect of manufacturing, impacting both functionality and quality.

As quality standards rise, the requirements for surface roughness control are becoming increasingly stringent, with more areas requiring precise measurement each year. Are these challenges affecting your operations?

Mitutoyo’s surface roughness measuring machine provides effective solutions to meet these growing demands, ensuring accuracy and reliability in your measurements.

Challenges:

• The measuring point is too narrow to meet the standard requirements.

• Clearing a cylindrical object for measurement is time-consuming.

• A roughness measuring machine is available, but contour measurement is now required, and there is no available space to install an additional machine.

Accurately Measure Tapered Parts and Narrow Areas to Meet Stricter Roughness Requirements

Are you facing increasing roughness requirements for narrow areas, such as channels and shaft grooves?

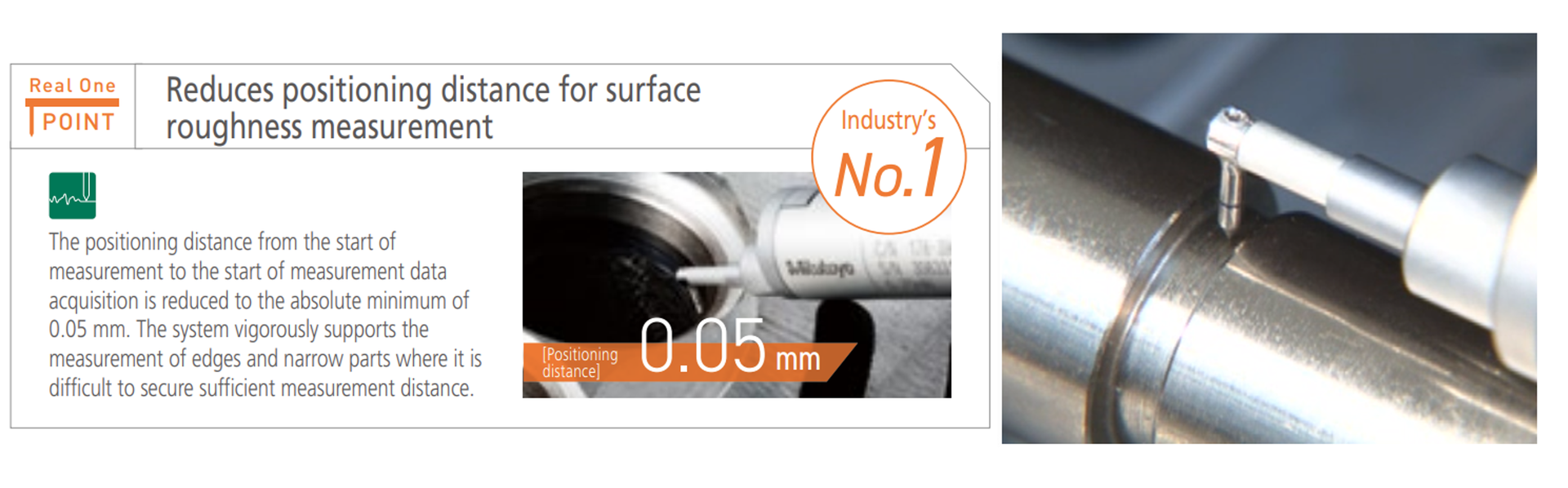

With a significantly reduced run-up distance of 0.05 mm—compared to the conventional 0.3 mm—it’s now possible to measure edge surfaces and narrow areas with precision, meeting stricter roughness management standards.

The run-up distance has been minimized, enabling roughness measurement in even narrower areas.

Reducing Cycle Time for Preparation

Does it take too long to clear a cylindrical object for measurement?

The "3-Axis Adjustment Table" simplifies the process by allowing easy clearing and leveling adjustments with guided table operation, significantly reducing cycle time. This system enables the precise setup of cylindrical objects without relying on experience or intuition.

It facilitates clearing and leveling, effectively reducing cycle time.

Flexible Surface Roughness and Contour Measurement Enabled by Detector Replacement

Do you primarily rely on a surface roughness measuring machine but occasionally need to measure contour shapes?

With a simple detector replacement, a single unit can handle both surface roughness and contour shape measurements. Detectors can even be retrofitted after the main unit is installed, providing seamless flexibility and adaptability.

This dual-function capability allows one machine to perform both measurements in a compact space, efficiently accommodating varying usage frequencies and ensuring versatility in your operations.

Two functions in a single machine through "detector exchange." Detectors can be retrofitted to enable both surface roughness and contour measurements.

Need help solving a measurement problem? Contact us anytime!

Related Solutions and Applications

CS-H5000CNC - CNC Surface Roughness and Contour Measuring System

The CS-H5000CNC is a high-accuracy system that combines contour and surface roughness measurement with CNC functionality, enabling efficient and simultaneous inspection of high-precision workpieces like aspheric lenses.

SJ-410 Series - Compact Surface Roughness Instrument

A compact surface roughness instrument with analysis functions comparable to those of stationary surface roughness instruments. With a wide selection of stylus shapes to choose from, this model supports special forms at a low cost. It can also evaluate minute steps/depths.

SJ-220 Series - Portable Surface Roughness Tester

The Surftest SJ-220 is a best-selling portable surface roughness tester designed for on-site use. This compact model features a large color LCD screen and a small measuring unit, providing convenience and efficiency for roughness measurements in any location.
