Solution Proposal from Mitutoyo

Have You Considered Measuring Minute Shapes that were Previously Unattainable with a Coordinate Measuring Machine?

　-Vision measuring machine equipped with a scanning probe　MiSCAN Vision System

Microfabrication technology has advanced rapidly in recent years, driven by innovations in automotive electrification and sensing systems essential for autonomous driving.



Are you facing challenges in evaluating microfabrication despite successful prototyping?



Mitutoyo offers tailored solutions to address these challenges.

Challenges:

• A lack of suitable styluses for measurement, deformation of the shape during fracture inspection, and the absence of a dedicated microshape evaluation machine.

• The need to evaluate precision-molded resin products without deformation caused by stylus contact pressure.

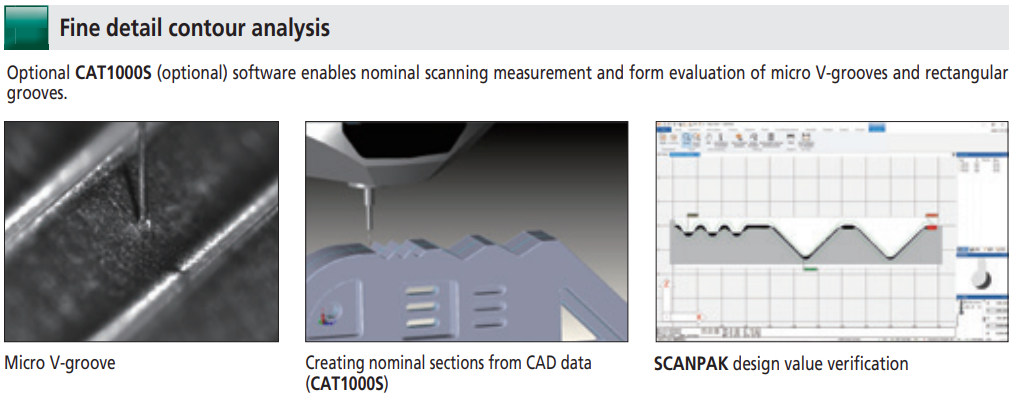

• The desire to efficiently obtain finer point cloud data for accurate contour matching between design values and workpieces.

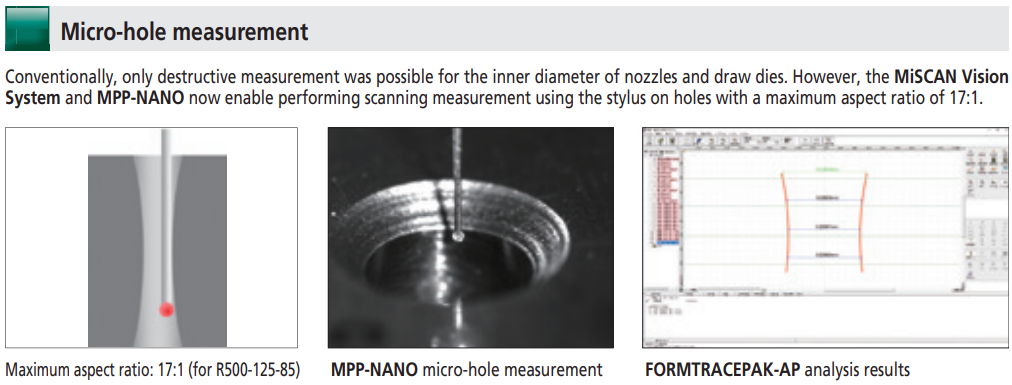

Microfabrication Evaluation with a Minimal Stylus Diameter of 0.125 mm



Traditional Coordinate Measuring Machines, with a minimum probe diameter of 0.5 mm, often struggle to evaluate microfabrication. Is this a challenge you face in your precision measurements?

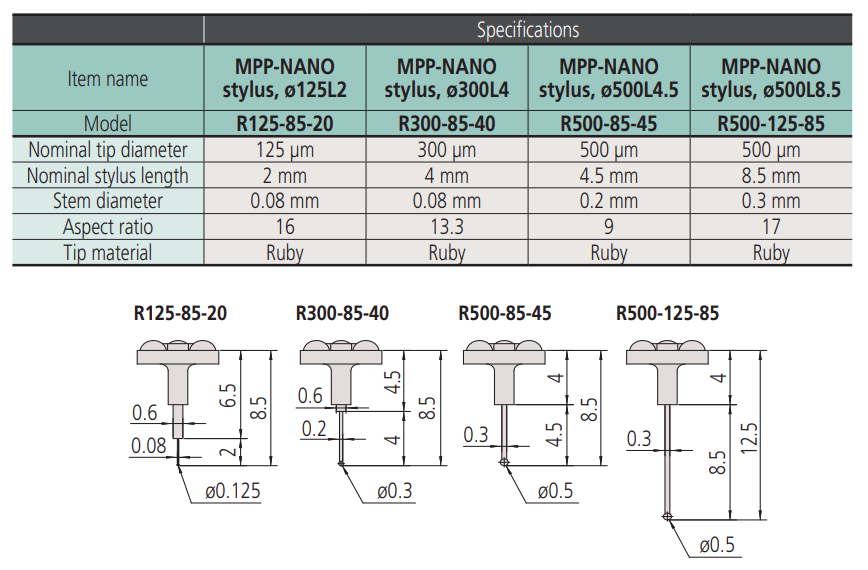

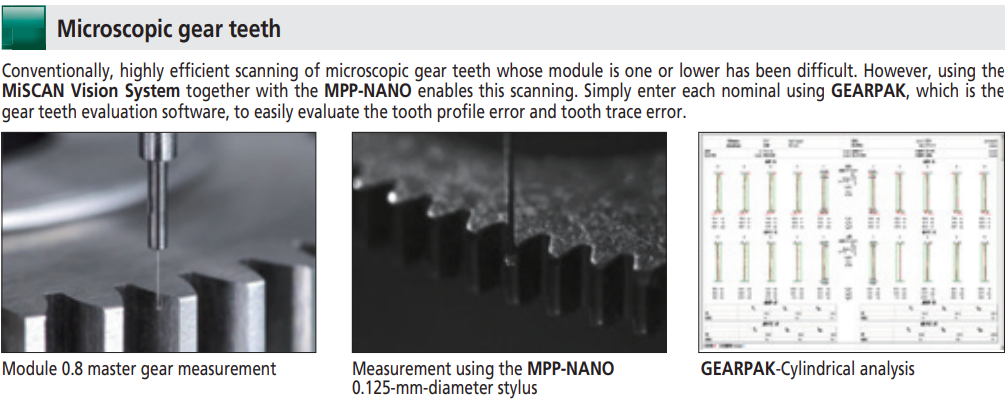

The MiSCAN Vision System offers a solution with its micro stylus, featuring a diameter as small as 0.125 mm. This innovation enables efficient scanning measurement of microfabrication, such as precision micro gears with a module size of 1 or less, which were previously difficult to evaluate.



Additionally, the MiSCAN Vision System operates with ultra-low contact pressure—approximately 1 mN or less. This allows precise measurement of delicate resin moldings, like lens barrels, with minimal deformation caused by contact pressure. Experience a new level of precision and efficiency in microfabrication evaluation.

Applications of the MiSCAN Vision System

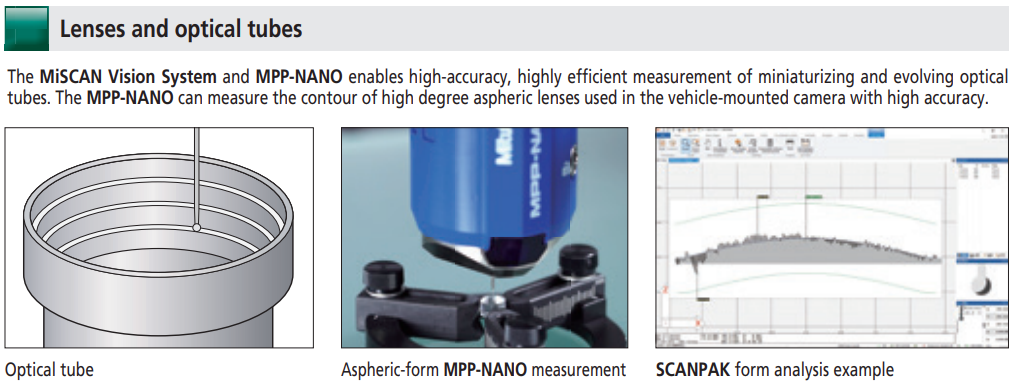

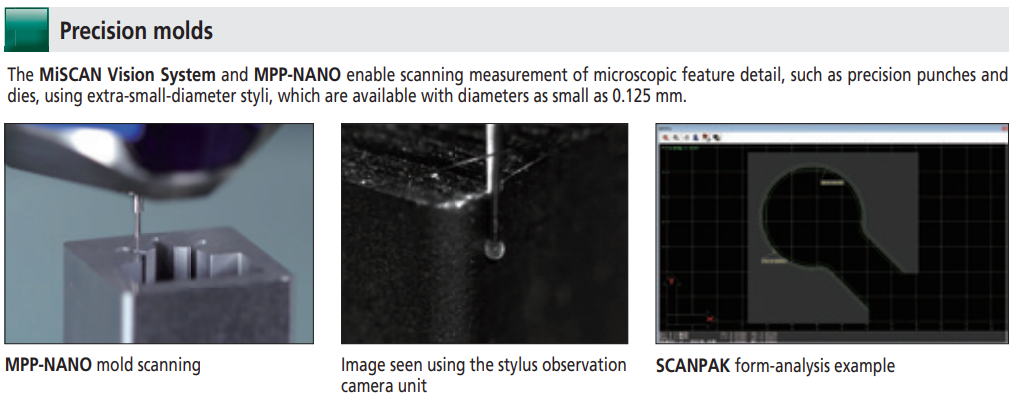

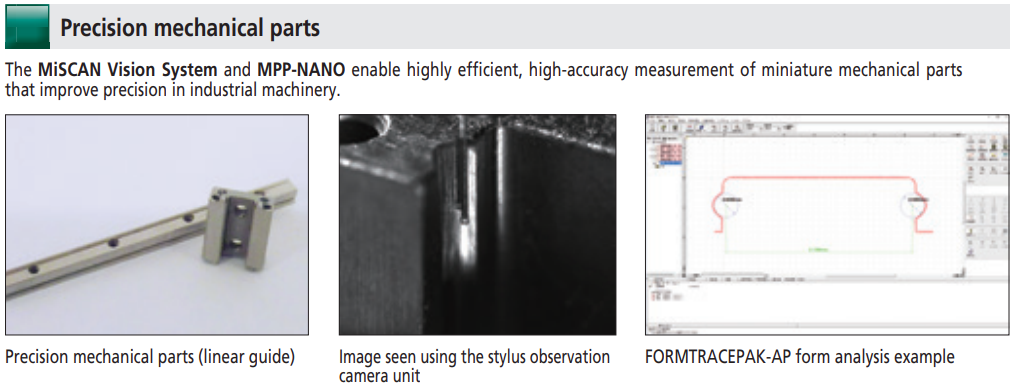

It is ideal for determining processing conditions during prototype development of precision fine gears, lenses, lens barrels, precision molds, and precision mechanical parts.



Achieve More with the MiSCAN Vision System Featuring an Ultra-Small Probe

Need help solving a measurement problem? Contact us anytime!

Related Solutions and Applications

UMAP Vision System - Micro-Form Measuring System



The UMAP Vision System, featuring a 15 µm nano-stylus tip, enables precise contact measurements of microscopic components like injection nozzles and precision-molded parts, solving challenges in evaluating minute dimensions.

FORMTRACER Avant Series - Surface Roughness and Contour Measuring Instrument

The FORMTRACER Avant series offers versatile models that simplify setup and alignment, reduce workpiece securing time, and allow seamless conversion between contour and surface roughness measurement by retrofitting detectors after installation, ensuring precise measurements even in narrow areas.

Hyper Quick Vision WLI Series - Non-Contact 3D Measuring System

The Hyper Quick Vision WLI integrates vision measurement with white light interferometry, providing precise, non-contact coordinate and nano-level 3D form measurements in a single unit—perfect for mass-producing next-generation micropatterns in electronic devices.
